EV Wall Box charger - WEV02

EV Wall Box charger - WEV02

$750.00 AUD
$750.00 AUD
En vente Épuisé
Taxes incluses.
Select Variant

Weight

5 kg

Kw

7kW/11KW/22KW

Amp

8-32 Amp Single Phase 7.2KW

8-16 Amp Three Phase 11KW

8-32 Amp Three Phase 22KW

Warranty

2 Year

Types

Universal



Charging Specifications:

  1. Single Phase: Available in 7KW
  2. Three Phase Options: Available in 11KW, and 22KW

Warranty:

  1. Duration: 2 Years
  2. Condition: Installation must adhere to the provided instructions.

Compatibility:

  1. Vehicles: Compatible with all electric vehicle models including Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo, Xiaomi, XiaoPeng, and others.

Cable Information:

  1. Standard Cable: 5 meters
  2. Custom Lengths: 7m and 10m cables available upon request.

Ideal Use:

  1. Suitable for home and light commercial applications.

Features:

  1. Faster Charging: Charges 5-12 times faster than conventional domestic portable chargers.
  2. Simple Installation: Preconfigured unit; electrician needs to mount and connect to the electricity board.
  3. User-Friendly: Handle for easy charging; multicoloured LCD shows current operating status.
  4. Integrated Cable Holder: Neatly wraps and protects EV equipment.
  5. Multiple Variations: Universal charging station or 5m Type 2 cable hardwired. Available in both single and three-phase.
  6. Compatibility: Compatible with all EVs in Australia, including Tesla.
  7. Australian Consumer Laws: Warranty backed locally and compliant with Australian consumer laws.

Installation Note:

  1. Must be carried out by a licensed and qualified electrician familiar with Australian industry standards.

Technical Specifications:

Input & Output:

  1. Input/Output Voltage: AC 230V
  2. Adjustable Output: 8A/10A/13A/16A/22A/32A (via mobile phone or car)
  3. Input Frequency: 50Hz
  4. Max. Output Power: 7.4KW (1 Phase); 22KW(3 phase)
  5. Max. Output Current: 32Amp
  6. Charging Interface: IEC 62196-2, SAE J1772

Protection Features:

  1. Over voltage protection
  2. Under voltage protection
  3. Overload protection
  4. Short circuit protection
  5. Earth leakage protection
  6. Over-temperature protection
  7. Lightning protection

Function and Accessories:

  1. LCD: 5 inch
  2. RCD: Type A + 6mA DC
  3. LED Indicator Light

Working Environment:

  1. Protection Degree: IP 65
  2. Temperature Range: -30 to 50°C
  3. Relative Humidity: 0-95%
  4. Cooling: Natural Air Cooling
  5. Standby Power Consumption: <3W

Mechanical Details:

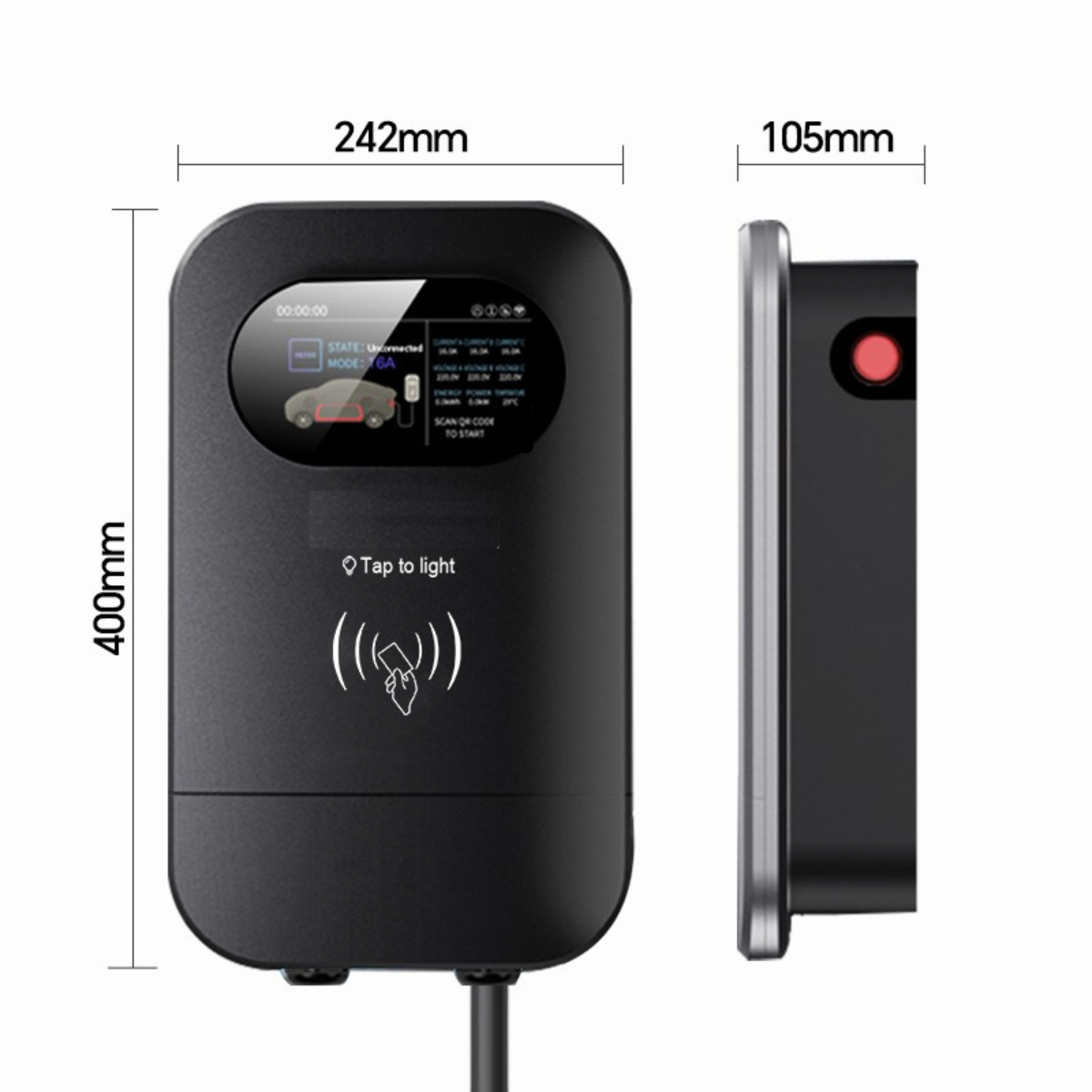

  1. Dimensions (W/H/D): 242mm x 400mm x 105mm
  2. Weight: 5 kg

Mounting Accessories:

  1. Wall-mounting bracket
  2. Ground-mounting pole (optional)

Certificates:

  1. CE, TUV, FCC, CSA, RCM



Afficher tous les détails
Technical Features Table
Input/Output Voltage 100~240VAC 50/60Hz 1Phase 400VAC 50/60Hz 3Phase 400VAC 50/60Hz 3Phase
Output Current 8A/10A/13A/16A/22A/32A 8A/10A/13A/16A 8A/10A/13A/16A/22A/32A
Max Power 7kW 11kW 22kW
Product Size 385*284*80(mm)
Weight ~4.1kg ~3.6kg ~5.0kg
Cable Length 5m
Standby Power <3W
Communication Wi-Fi 802.11b/g/n@2.4GHz
User Interface LED(RGB)/LCD(4.3)/RFID(mifare ISO&IEC 14443A)
Protocol OCPP1.6j
Standards IEC 61851-1
Charging Interface IEC 62196 Type 2
IP Degree IP65
Operating Temperature -25~+50℃
Humidity Max.95%(non-regulating)
Protection Overvoltage Protection, Undervoltage Protection, Overcurrent Protection, Residual Current Protection, PEN Fault Protection, Overtemperature Protection
Note Charging Interface can be changed according to customer needs
